Brisbane: Installation of Ceiling Fan Guide

Before you even think about picking up a screwdriver, it’s worth remembering that a great ceiling fan installation starts with solid prep work. This isn’t just about ticking boxes; it’s about avoiding those common headaches that can turn a simple job into a weekend-long ordeal. Getting these first steps right is hands down the most important part of achieving a safe, wobble-free fan that will last for years.

Your Essential Pre-Installation Checklist

Jumping straight into the installation without a plan is a classic recipe for frustration. A bit of forethought makes all the difference between a smooth project and multiple trips to Bunnings. This checklist covers the crucial planning stuff, from picking the right fan to making sure your ceiling can actually handle it.

Matching the Fan to Your Room

First things first, you need a fan that actually fits the space—not just in terms of looks, but in performance. The size of your room is what determines the ideal blade span for proper air circulation. A fan that’s too small for a big room will barely move the air, and one that’s too big can feel like you’re living in a wind tunnel.

Here’s a quick guide based on room size:

• Small Rooms (up to 7 square metres): A blade span of 74-91 cm is perfect. Think home offices or a small kid’s bedroom.
• Medium Rooms (up to 16 square metres): Your standard 107-122 cm fan will do the trick here. This covers most bedrooms and living areas.
• Large Rooms (over 16 square metres): For those big, open-plan living spaces common in Brisbane, you’ll need a fan with a blade span of 132 cm or more to really move enough air.

Pro Tip: Want a clean, modern look? Pick a fan colour that blends in with your ceiling. A white fan on a white ceiling just disappears, letting your other decor be the star of the show. The aim is function, not a massive visual distraction.

Considering Ceiling Height and Clearance

Safety and performance are directly tied to your ceiling height. It’s not just a suggestion; Australian standards require the bottom of the fan blades to be at least 2.1 metres from the floor. This is non-negotiable for safety.

For standard 2.4-metre ceilings, a ‘hugger’ or low-profile fan that mounts flush is your best bet. If your ceilings are higher than 2.7 metres, you’ll need a fan with a downrod to bring it down to the sweet spot for air circulation—usually around 2.4 to 2.7 metres from the floor.

Assessing Your Ceiling’s Structural Support

A ceiling fan spinning at full speed exerts a surprising amount of force. It’s not enough to just have an electrical box up there; it has to be a proper, fan-rated box that’s securely attached to a ceiling joist or a specially installed brace. A standard light fixture box is absolutely not designed to handle the weight and vibration of a moving fan.

If you can, pop your head into the ceiling space and locate the joists. If your perfect spot for the fan falls between two joists, you’ll need to install a timber brace to support it. Honestly, this structural check is the single most critical safety step of the whole project. If you’re even slightly unsure, it’s time to call in a professional. For a deeper dive, you can learn more about ceiling fan considerations at our main guide page: https://dlgelectrical.com.au/dlg-blog/ceiling-fan/

Anytime you’re working off the ground, like when you’re up a ladder checking out ceiling joists, make safety your number one priority. Always ensure you have the correct Working At Height Safety Equipment as part of your pre-installation planning.

Gathering the Right Tools and Hardware

There’s nothing worse than getting halfway through a job only to realise you’re missing a crucial tool. Embarking on a ceiling fan installation without the right gear is frustrating and almost guarantees a few extra trips to Bunnings, killing your momentum.

Getting everything lined up before you start is the secret to a smooth, professional, and secure result. This isn’t about having a workshop full of expensive equipment; it’s about having the correct tools for this specific task. While a general list of essential assembly tools is a good starting point, installing a fan has some unique electrical and mounting requirements you need to be ready for.

Your Core Toolkit

Most of what you’ll need is probably already in your garage or toolbox. The trick is to have it all within arm’s reach before you even think about climbing that ladder. Trust me, you don’t want to be scrambling for a different screwdriver bit while balancing precariously.

Here are the absolute non-negotiables:

• Non-Contact Voltage Tester: This is your most important safety tool, period. It lets you confirm with 100% certainty that the power is off before you touch a single wire. Never, ever just trust a light switch.
• A Sturdy Ladder: Make sure it’s the right height for your ceiling. You need to be able to work comfortably without over-stretching, and stability is paramount.
• Screwdrivers: You’ll need both Phillips head and flathead drivers, ideally in a couple of different sizes to match the various screws on the fan and bracket.
• Wire Strippers/Cutters: These are essential for cleanly removing insulation from wires without damaging the copper strands underneath.
• Pliers: A solid pair of linesman’s pliers is perfect for twisting wires together to create a secure, reliable connection.

We see this all the time: people using pliers to strip wires. Please don’t. It often nicks the copper, creating a weak point that can heat up over time and become a genuine fire hazard. Always use proper wire strippers for a clean, safe cut.

Selecting the Right Mounting Hardware

The hardware that anchors your fan to the ceiling is the absolute foundation of a safe installation. You cannot just screw a fan bracket into plasterboard and hope for the best; it must be secured to a solid structural element like a timber joist or beam.

The type of ceiling you have dictates the exact hardware you’ll need to buy. Getting this right is just as critical as choosing the correct fan for your room’s dimensions. If you’re still deciding on that, our ceiling fan size guide will help you make sure your new fan is a perfect match.

Choosing Your Mounting Hardware by Ceiling Type

To ensure your fan stays put for years to come, you need to match your mounting hardware to your ceiling’s construction. This table breaks down the most common scenarios we encounter in Brisbane homes.

Ceiling Type	Recommended Junction Box	Required Mounting Bracket	Key Installation Tip
Plasterboard with Joists	Metal, fan-rated octagonal box.	Mount directly to the side of a ceiling joist for maximum strength.	Use the heavy-duty wood screws that come with the fan bracket, not plasterboard screws.
Wood Beam	Fan-rated “pancake” box.	Surface mount directly to the beam.	Pre-drill pilot holes to prevent the wood from splitting when you drive in the mounting screws.
Concrete Slab	No box needed; surface mount.	Heavy-duty expansion anchors or concrete screws.	Use a hammer drill with a masonry bit to drill holes for the anchors. Ensure they are rated for the fan’s weight.

Understanding these differences is vital. Using the wrong junction box or bracket is one of the leading causes of wobbly or—in the worst-case scenario—falling fans. Take a moment to identify your ceiling structure and purchase the correct, fan-rated hardware from the get-go. It’s a small detail that makes a massive difference to the safety and longevity of your installation of ceiling fan.

Getting the Wiring Right: Safety First, No Exceptions

This is the part of the job where you absolutely cannot cut corners. Messing with your home’s wiring is serious business, and a single mistake can have devastating consequences. Before you even dream of connecting that shiny new fan, you have to kill the power safely and know exactly what you’re looking at.

Shut It Down and Check It Twice

First things first, head to your switchboard (you might call it a fuse box or circuit breaker panel). You need to find the circuit that runs the light or power point where the fan is going. It should be labelled something like “Lights – Bed 2” or “Power – Living.”

Once you’ve found it, flick the breaker to the OFF position. That should cut the power, but you can never, ever assume it has. This is where a lot of people get into trouble.

Now for the most critical safety check of the entire job. Grab your non-contact voltage tester—an absolute must-have for any electrical DIY. Hold the tip of the tester near the existing light switch, then take it up to the ceiling and test the wires where the old light fixture is.

If that tester beeps or lights up, stop everything immediately. It means the circuit is still live. You’ve either flipped the wrong breaker, or you’ve got some funky wiring going on. Go back to the switchboard and double-check. If you can’t get the power to stay dead, it’s time to call a licensed Brisbane electrician. End of story.

Don’t Skip This Step: Never, ever trust that a flipped switch or breaker has done its job. Always use a voltage tester to physically confirm there is zero current before your hands go anywhere near those wires. It’s a two-second check that prevents serious injury.

Once you are 100% certain the power is off, you can get on with taking down the old light and prepping the wires for your new fan.

Understanding Your Ceiling’s Wiring Colours

When you expose the wires in your ceiling, you’ll see a few different colours. In Australia, these colours mean specific things, and mixing them up is a recipe for disaster.

Here’s a quick rundown of the standard Aussie wiring scheme:

• Active (Live): This is usually Red or Brown. It’s the wire carrying the current from your switchboard.
• Neutral: This will be Black or sometimes Light Blue. It completes the circuit, sending the current back where it came from.
• Earth (Ground): Look for the Green/Yellow striped wire, or sometimes just plain Green. This is a crucial safety wire that protects you from electric shock if something goes wrong.

Your new ceiling fan will have corresponding wires. The manufacturer’s manual will have a diagram showing you exactly what goes where, but it’ll almost always follow this colour-coding.

Making the Connections

The job here is to connect the wires from your ceiling to the matching wires on the fan. Simple enough: the red Active from the ceiling joins the fan’s Active wire, and so on.

If your fan has a built-in light, you’ll probably see an extra wire for it, often blue or black with a white stripe. This is where things can get a bit tricky, as your wall switch needs to be set up for this dual function. This is a big reason why getting a professional for the final hook-up is a smart move.

A secure connection is non-negotiable. Use pliers to firmly twist the copper ends of the matching wires together, then cap them off with a correctly sized wire nut. A loose connection can arc and spark, creating a massive fire hazard inside your ceiling cavity.

Know When to Call a Licensed Sparky in Brisbane

While you can handle the physical assembly, Queensland law is crystal clear: any work involving your home’s fixed electrical wiring must be done by a licensed electrician. That means the final connection of the fan to your mains power is not a DIY task.

A sparky ensures the wiring is safe, compliant with Australian Standards, and won’t void your home insurance policy. There are strict rules for a reason. For example, Australian Standard AS 4226 – 2008 requires a minimum clearance of 2.1 metres from the floor to the fan blades and at least 300 millimetres between the fan and the ceiling. This isn’t just for good airflow; it’s a safety mandate. Professionals know these rules inside and out, a key reason why professional installation is the standard, as highlighted in reports on the Australian ceiling fan market.

Think of it this way: you can build the fan and mount it, but the final, critical step of connecting it to the grid belongs to a pro who has the right tools, knowledge, and insurance to protect you, your family, and your home.

With the electrical side of things prepped and ready, it’s time to get our hands on the fan itself. This is where a bit of patience really pays off. Seriously, rushing the assembly is the number one reason fans end up with that annoying wobble. Take your time now, and you’ll be rewarded with a smooth, quiet fan for years.

First up, and probably the most critical part for a stable fan, is getting that mounting bracket solidly in place. This little piece of metal is the anchor for the whole unit. It must be screwed directly into a solid timber ceiling joist or a purpose-built timber brace. Whatever you do, don’t even think about relying on the plasterboard to hold it—it simply won’t take the weight and constant vibration.

Use the heavy-duty screws that came in the box to fix the bracket to the joist. Here’s a pro tip: pre-drill some small pilot holes first. This stops the timber from splitting and makes driving the big screws in a whole lot easier. Once it’s up, give the bracket a good, firm tug. It shouldn’t budge at all.

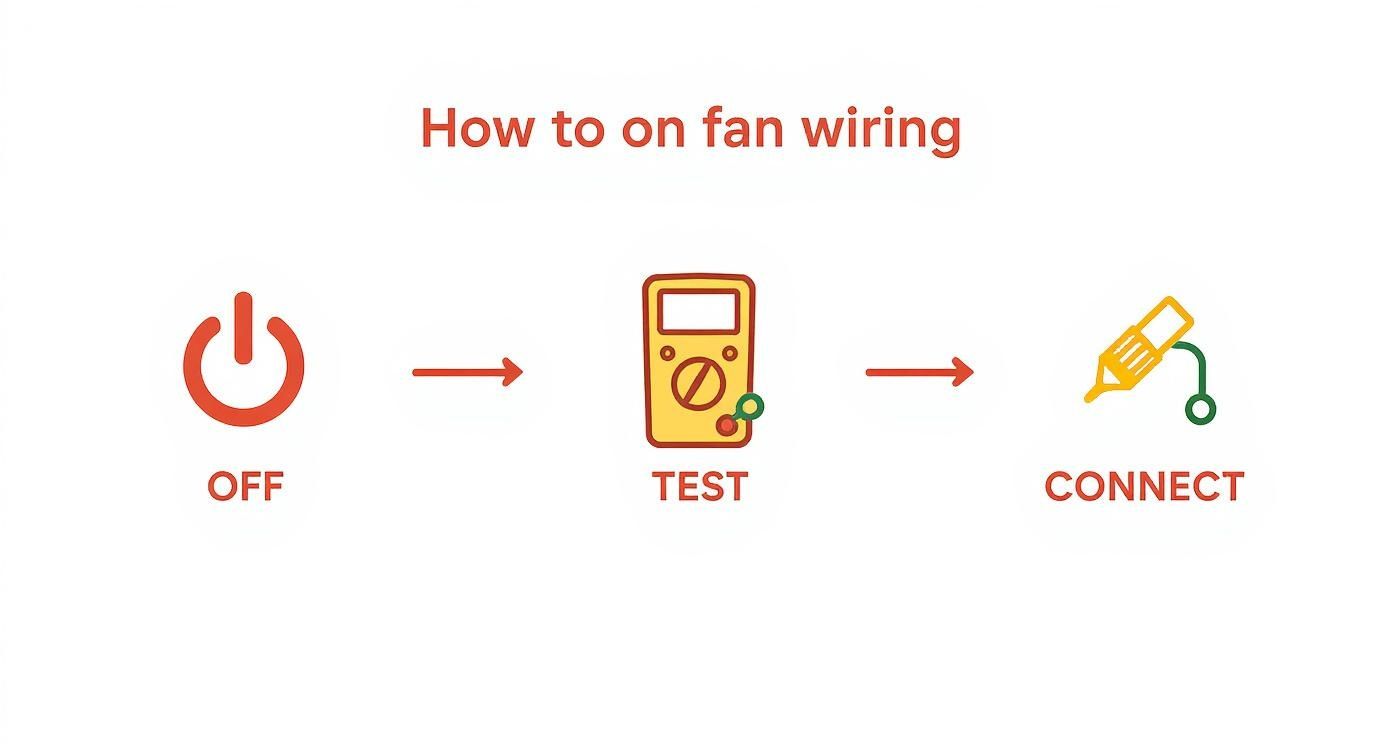

This quick guide highlights the non-negotiable safety steps for the wiring part of the job.

This sequence is crucial for any installation of ceiling fan—always, always double-check the power is off with a voltage tester before you touch a single wire.

Pre-Assembling the Motor and Downrod

Most modern fans are designed so you can do most of the assembly on the ground. This is a massive help, saving you from juggling bits and pieces while teetering on a ladder. A good habit is to lay the motor on the styrofoam packaging it came in to protect the finish from scratches.

Now, thread the fan’s electrical wires up through the canopy (that’s the decorative cone that will sit against the ceiling) and then through the downrod. Attach the downrod to the motor housing using the clevis pin and cotter pin provided. This connection has to be rock-solid. Make sure you bend the cotter pin properly so the clevis pin can never work its way loose. A loose downrod is a guaranteed ticket to Wobble City.

We see this all the time: people forget to slide the canopy onto the downrod before connecting the motor. It’s a simple thing, but if you miss it, you have to pull everything apart and start again. An easy mistake to make when you’re in the zone.

Hanging the Fan and Attaching the Blades

With the motor and downrod together, you can carefully lift the unit up to the ceiling. Most mounting brackets these days have a handy J-hook or a slot that lets you hang the fan assembly temporarily. This is a game-changer, as it frees up both of your hands to do the wiring. Use it!

Once the fan is hanging securely, you can make the electrical connections we talked about earlier. With the wiring sorted, slide the canopy up to the ceiling, making sure no wires get pinched, and fasten it to the mounting bracket.

Last but not least, the blades. This part needs a bit of precision.

• First, attach the blade irons (the metal arms) to the blades. Don’t go overboard tightening the screws here; just get them snug. Overtightening can crack the blade.
• Next, attach each blade assembly to the motor. I find it easiest to attach one blade, then the one directly opposite it, and so on. This helps keep the motor balanced while you work.
• Once all the blades are on, go back around and give all the screws a final, firm tighten. Getting them all to a consistent tightness is key for a wobble-free start.

It’s vital to stick to Australian safety standards here. Clause 12.5.3 of Standard AS 4226 – 2008 is clear: fan blades must be installed at a minimum height of 2.1 metres from the floor and have at least 300 millimetres of clearance from the ceiling. This isn’t just red tape; it ensures both safety and proper airflow in a market set to hit nearly USD 397.88 million in Australia in 2024. For more on the growing demand, you can check out the full research on the Australian ceiling fan market size.

Final Checks, Testing and Troubleshooting

You’ve got the fan securely mounted and wired up, and you’re on the home stretch. Don’t rush this last part, though. Taking a few extra minutes for testing and fine-tuning is what separates a decent DIY job from a professional, whisper-quiet installation that’ll last for years.

First things first, grab your screwdriver and do one last check of every single screw. That means the mounting bracket, the downrod connections, and each of the blade irons. Give them all a final, firm tighten. You’d be surprised how often a frustrating click or wobble comes down to one loose screw.

Powering Up for the First Time

Alright, it’s the moment of truth. Head back to your switchboard and flick that circuit breaker back to the ON position. Turn on the wall switch for the fan, too.

Now, grab the remote or head to the wall control and run the fan through its paces. Cycle through every speed setting, from the lowest to the highest. If your model has a light, make sure it turns on, off, and dims correctly if that’s a feature. This quick run-through confirms all your wiring is spot-on and the remote is paired up and working.

Taming the Dreaded Fan Wobble

If you power up your fan and it starts swaying like it’s in a stiff breeze, don’t panic. A bit of wobble is pretty common right after installation, and it’s almost always a simple balance issue you can sort out with a little patience.

Most decent fans come with a balancing kit in the box, which is usually just a small plastic clip and a few little weights with adhesive backs. The process is basically trial and error, but it’s straightforward.

• Clip it on: Start by sliding the plastic clip onto the trailing edge of one of the fan blades. Place it about halfway between the motor and the blade tip.
• Test it out: Turn the fan on to the speed where the wobble is most obvious. Is the wobble better or worse?
• Move to the next blade: Turn the fan off and move the clip to the same spot on the next blade. Repeat the test. You’re looking for the one blade where the clip makes the biggest difference.
• Find the sweet spot: Once you’ve found the problem blade, keep the clip on it. Now, experiment by sliding it in and out along the edge to find the exact position where the wobble almost disappears.
• Stick the weight: Take one of the adhesive weights and stick it to the top centre of the blade, right in line with where you perfected the clip’s position. Pull the clip off, and you should have a rock-solid, balanced fan.

It’s worth spending 15 minutes getting this right. A perfectly balanced fan isn’t just quieter—it puts way less strain on the motor and mounting hardware, helping extend its lifespan. This is a crucial step for a professional-grade installation of ceiling fan.

Dealing With Other Common Hiccups

Wobbling is the number one issue, but a couple of other things can pop up. A quiet hum is often normal, especially in the first few hours as the motor settles in. But if you’re hearing a loud hum or a distinct buzzing sound, that could point to a loose wire connection or an incompatible wall controller.

The Australian ceiling fan market is booming, expected to hit USD 265.07 million by 2030. This growth is driven by innovations like ultra-quiet DC motors and smart controls. Making sure these advanced features work flawlessly starts with a solid, perfectly balanced installation. You can find more insights on the Australian ceiling fan market over at techsciresearch.com.

Common Installation Questions Answered

Even after what feels like a successful install, a few questions always seem to pop up. It’s completely normal to wonder about the specifics, especially when you’re dealing with Brisbane’s local regulations and just trying to get that perfect, silent spin. We’ve pulled together the most common queries we hear from homeowners to give you clear, straightforward answers.

Do I Need an Electrician to Install a Ceiling Fan in Brisbane?

Yes, you absolutely do. The law in Queensland is crystal clear on this one: any electrical work involving your home’s fixed wiring has to be done by a licensed electrician.

While you can certainly handle the physical assembly—like attaching the blades and putting the fan body together—the final electrical connection is strictly a job for a professional sparky. This isn’t just red tape; it’s a critical safety measure. A licensed electrician makes sure every connection is secure, compliant with Australian Standards, and won’t void your home insurance. It’s the only way to guarantee a safe and legal installation of ceiling fan.

What Is the Minimum Legal Ceiling Height for a Fan?

According to Australian Standard AS 4226 – 2008, the bottom of the fan blades must sit at least 2.1 metres from the floor. This is a non-negotiable safety rule designed to prevent anyone from accidentally walking into the blades.

For homes with standard 2.4-metre ceilings, this means you’ll need to look for a low-profile or ‘hugger’ style fan. These models are built to mount flush against the ceiling, giving you the most headroom possible while still delivering great airflow.

My New Fan Wobbles Even on Low Speed. What Went Wrong?

A wobbly fan is almost always a balance issue, not a sign of a dud motor. Before you get too frustrated, run through this simple checklist. The fix is usually quick and painless.

• Check Every Screw: The most common culprit is a single loose screw. Go back and check every single one—the ones on the mounting bracket, downrod, and especially the screws holding the blades to their brackets.
• Ensure Blade Height is Even: Grab a tape measure and check the distance from the tip of each blade down to the floor. If one blade is sitting higher or lower than the others, it will throw the whole fan off balance.
• Use the Balancing Kit: If everything is tight and even, it’s time to pull out the balancing kit that came in the box. Just follow the process of clipping the test weight to each blade until you find the one causing the trouble, then stick the adhesive weight onto the top of that blade.

A wobble isn’t just annoying; over time, it puts unnecessary stress on the fan’s mounting and motor. Spending ten minutes with the balancing kit is well worth it for a longer, quieter life for your new fan.

Can I Use a Dimmer Switch to Control Fan Speed?

No, you can’t. A standard light dimmer switch is designed to control the voltage for a light globe, not regulate the specific electrical current a fan motor needs.

Trying to use one can seriously damage the fan’s motor, cause an irritating humming sound, and even create a fire hazard. Always stick with the speed control that came with the fan, whether that’s a dedicated wall controller, a remote, or old-school pull chains. If you’re exploring motor types, getting your head around DC fans vs AC fans helps explain why they need specific controllers to work properly.

---
